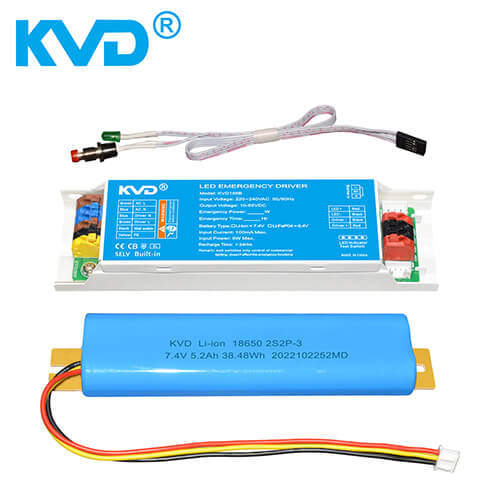

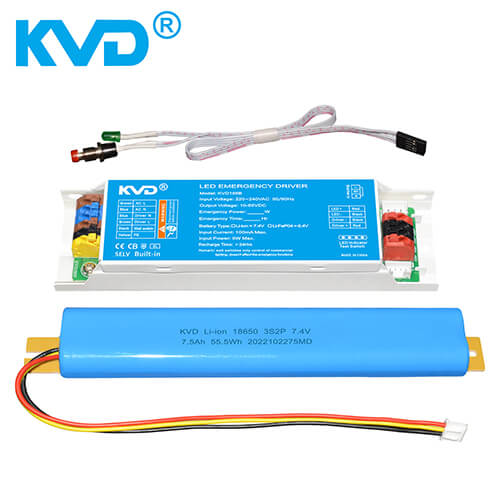

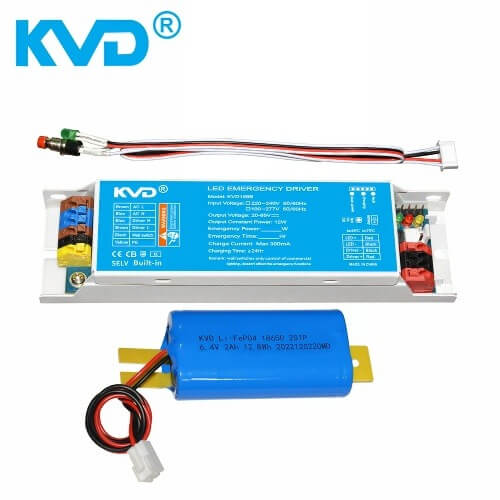

Lighting Emergency LED Driver Battery Premium LED Emergency Kit 10W Output Power 3 Hours

KVD188B Emergency LED Driver Batterys apply in Led constant current lighting luminaires’ normal lighting or emergency lighting mode, also can be only for emergency lighting purposes.

Emergency lighting solutions provided “charging”, and “discharging” functions, and use intelligent IC controlling circuits, according to be high exchange efficiency and smaller battery capacity.

Internal Li-ion battery, compatible with dimming or non-dimming led luminaire, external installation, emergency supply will be standing and charging by when AC grid electricity supply in normal, will be going to self-maintenance when fully charged, according to longer the battery’s lifespan

The emergency driver will be back up the lighting luminaires within 3 seconds when AC grid electricity stopped, to be sure the light can be working for 1 to 3hrs normally.

Categories: ,

How to choose a lighting emergency drive kit for a project, the following scenarios
Schools, hospitals, parking lots, subways, shopping malls, hotels, factories, etc. must comply with the requirements of the local government when choosing emergency drives. Some countries must comply with CB CE ROHS standards, and some countries must comply with UL and other standards.

This is an energy-saving solution of LED emergency battery backup for LED Emergency Light with external driver, and also for all dimmable lighting products can apply with emergency power-down function, as well as Led light, If you are looking for Tri-proof Light for LED Emergency Driver.

Emergency LED Driver Battery backup Kit specifications:
1. Emergency Power : 3W 5W 6W 8W 10W 12W 15W options
2. Lighting fixture Power: 10W-100w
3. Conversion Efficiency: ≥95%
4. Battery Type: LiFeP04 Battery Pack
5. Emergency duration time: 1.5 hours or 3 hours
6. Input Voltage: AC220-240V
7. Output Voltage: DC20-85V
8. Charging Time: 24 hours
9. Product Weight:300g-500g
10. Working Lifetime(Hour)30000
11. 5 years warranty， Two-year battery warranty
12. Best quality and factory price

LED Emergency Driver Product Advantages:
Lighting emergency products
Simple wiring connection and easy installation
Installed outside of the luminaire
Easy maintenance, quick accessories replacement
Apply to dimmable lighting products
Seasonal self-testing
The battery has to charge and discharging protection
Aluminum housing with waterproof plug, comply EMC, FCC,
click ordinances, upgraded IP standard. longer lifespan
Comply with international transportation conditions and requirements
Automatically turns on LED lighting when there is a main power failure.

Working Environment Attention

Working & storage temperature: -10℃–+45℃（Standard temperature 28℃）
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching it on for a long time usage.
